4x5" Large Format RISE

€230.00

      • If you already know a thing or two about pinhole photography or large format film photography in general this is the camera for you. With the increased film size the images this camera creates are of better “quality”* and usually look sharper. The ONDU 4X5” Large Format camera is compatible with the Polaroid 545 back which accepts the NEW-55 FILM as well as the standard 4X5” film holders available from the web and retail shops worldwide.

      • This is the RISE version that has 3 piholes, one in the centre and the other 2 located on thirds of the pinhole plane. With 3 tripod mounts it is possible to expose in all directions even with the rise pinholes. The RISE option gives you the possibility of raising or lowering the horizon to lower or upper third.
      • he camera has a fixed focal length of 58mm and a pretty wide angle of view of 106° which means that it will take some getting used to while framing your first shots. To make this easier we have engraved vertical and horizontal field of view engravingand added three levelling bulbs for vertical and horizontal orientations, the same goes for tripod mounts, one vertical two horizontal to make use of the rise feature, a first in the ONDU RISE series. The 4x5” standard film back is secured to the camera via magnets and wooden film retaining clips while the much heavier Polaroid 545 back requires screwing knobs to hold it in place during exposures. All large formats are hand painted inside with a black matte acrylic paint and sealed with black flocking material to prevent any light leaks from entering the camera. THE 4x5 CAMERAS are in production At the moment, expected stock around end January

        1. Dimensions:(W) 87mm x (H) 162mm (L) 142mm
        2. Weight:430g
        3. Focal length:58mm
        4. Pinhole diameter:0,3 mm
        5. f stop equivalent:193
        6. The camera is shipped with a, wooden exposure chart, 3D printed snap on filter, a protective carry bag (  as well as knobs for the Polaroid 545 back.
        7. THE 4x5 CAMERAS are in production At the moment, expected stock around end January
      • Exposure chart



HANDCRAFTED TO PERFECTION


The camera is meticulously handcrafted out of walnut, maple and ash wood right in our workshop ensuring the best quality possible. With the blend of minimalisticand functional design paired with fine woodworking this camera will last for generations. Every camera is finished with two coats of natural oils with beeswax and buffed to achieve a perfect satin feel, which also protects the camera from the elements.
The camera features a standard tripod mount, horizontal and vertical field of view engraving lines for easier composition, direction of film winding engravings as well as a built in spirit levelling bulb.




PANORAMIC Magic with the 4x10" Panoramikku

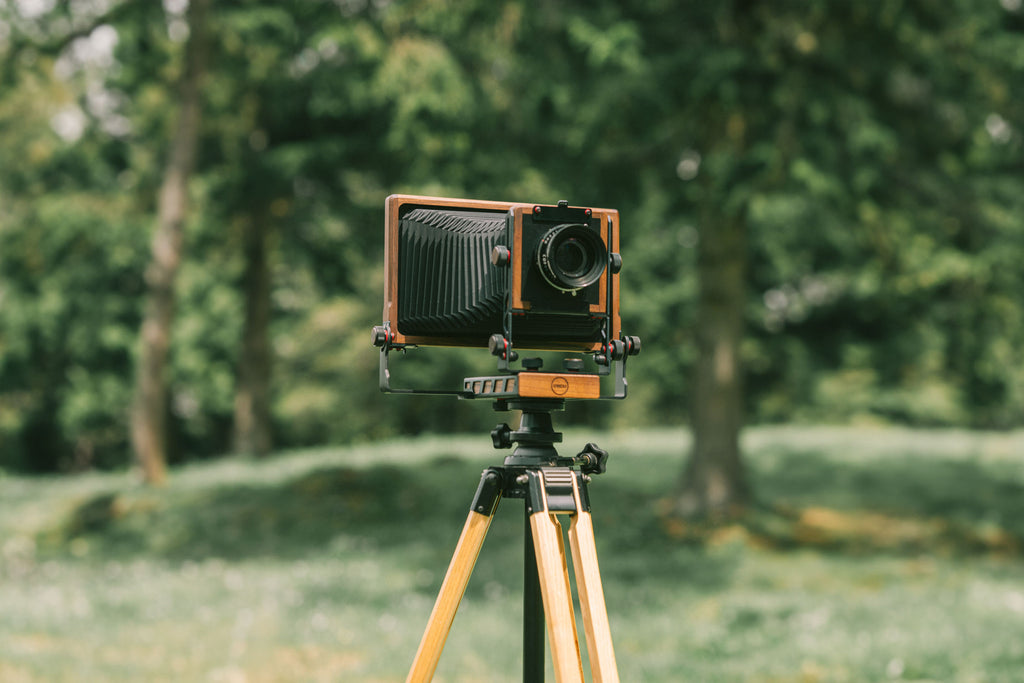

ONDU EIKAN 4X10" PANORAMIKKU -

You can convert the ONDU EIKAN Range into the 4x10" Panoramikku or vice versa by changing the magnetically attached bellows and repositioning the whole rear assembly including the bottom rails. This is done in a matter of minutes by removing the 2 rear tightening knobs. No tools required in this swap of components. We do not recommend quick swapps from the 4x10" Panoramikku to the Standard version, since this requires removal and retighteninig of a set of 10 screws.

As far as I'm aware this is the first such modular folding field camera that enables such flexibility and modularity in a lightweight and sleek package.

COMITTED TO CRAFTSMANSHIP

The Eikan is meticulously designed and crafted in Slovenia, within the European Union, to ensure exceptional quality. Our commitment to excellence is reflected in the use of high-quality components throughout the manufacturing process. Unlike some manufacturers who opt for plywood or laminates, we exclusively use solid walnut wood sourced locally. This choice not only enhances the aesthetics of the final product but also improves its capabilities.

Our skilled artisans handcraft the wooden components in our workshop, employing thick 5cm slabs of kiln-steamed and dried wood. This meticulous process takes approximately three months to complete and is crucial for ensuring the stability of the wood grain by releasing fiber tensions within the wood structure.

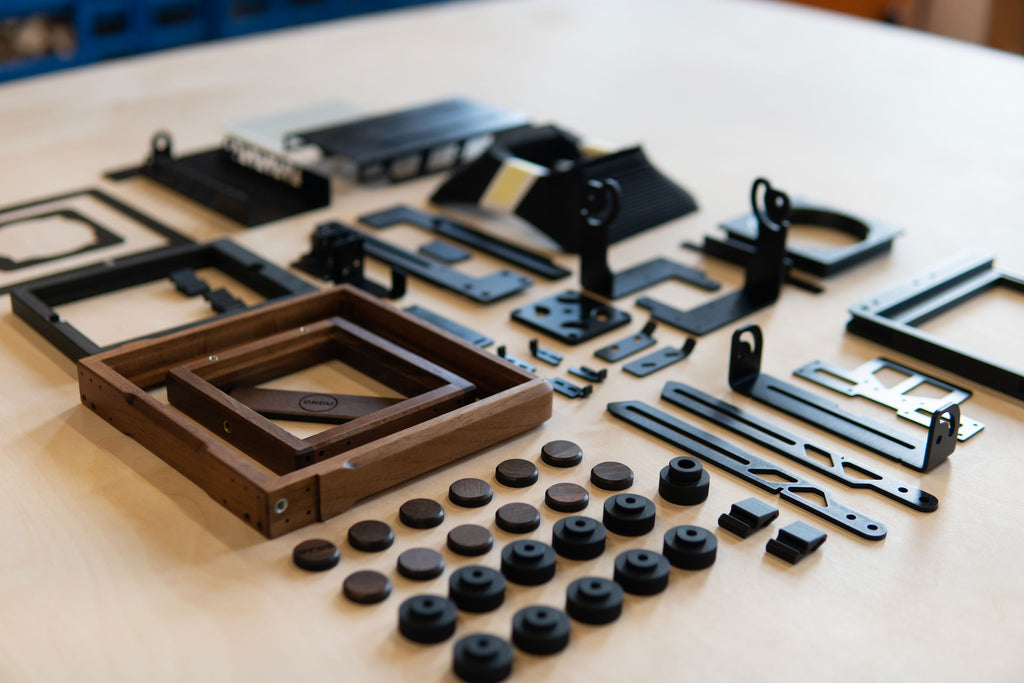

Even the knobs used for securing camera movements are custom-designed and made from anodized aluminum. These precision-engineered knobs are manufactured on a CNC lathe by the same reputable producer responsible for crafting aluminum components for ONDU Pinhole cameras over the past decade. It is important to note that we do not utilize 3D printed knobs in any ONDU cameras, whether in the past or future.

The modular aluminum structure of the Eikan is constructed from high-grade anodized aluminum, meticulously cut using laser technology and shaped with specialized CNC brake press machines. To enhance durability and minimize scratches and wear, all aluminum components undergo a hard anodizing treatment, which fortifies the outer layer.

While we employ 3D printing in certain areas, such as the front and back standard, as well as the rotating back and ground glass focusing screen carrier, it is done purposefully. The utilization of 3D printing provides an unparalleled strength-to-weight ratio and allows for swift modifications and future upgrades, such as roll film back add-ons. These 3D printed parts are constructed using Carbon fiber reinforced PLA filament.

To maintain a high level of quality control and ensure a seamless user experience, we meticulously source all components and manufacturers within the same valley. With the exception of standard screws and magnets, nearly every component of the camera has been designed and fabricated from scratch. This deliberate approach eliminates technical compromises and delivers a product that surpasses expectations.
