ONDU EIKAN 8x10"

€2,500.00 €3,050.00

A limited introductory price is available for the first 20 units only, until 30 June 2026 or until the allocation is sold out — whichever comes first.

Estimated delivery is between 15–30 September 2026.

By placing an order, you are reserving one of the first production units. These orders are final and non-refundable.

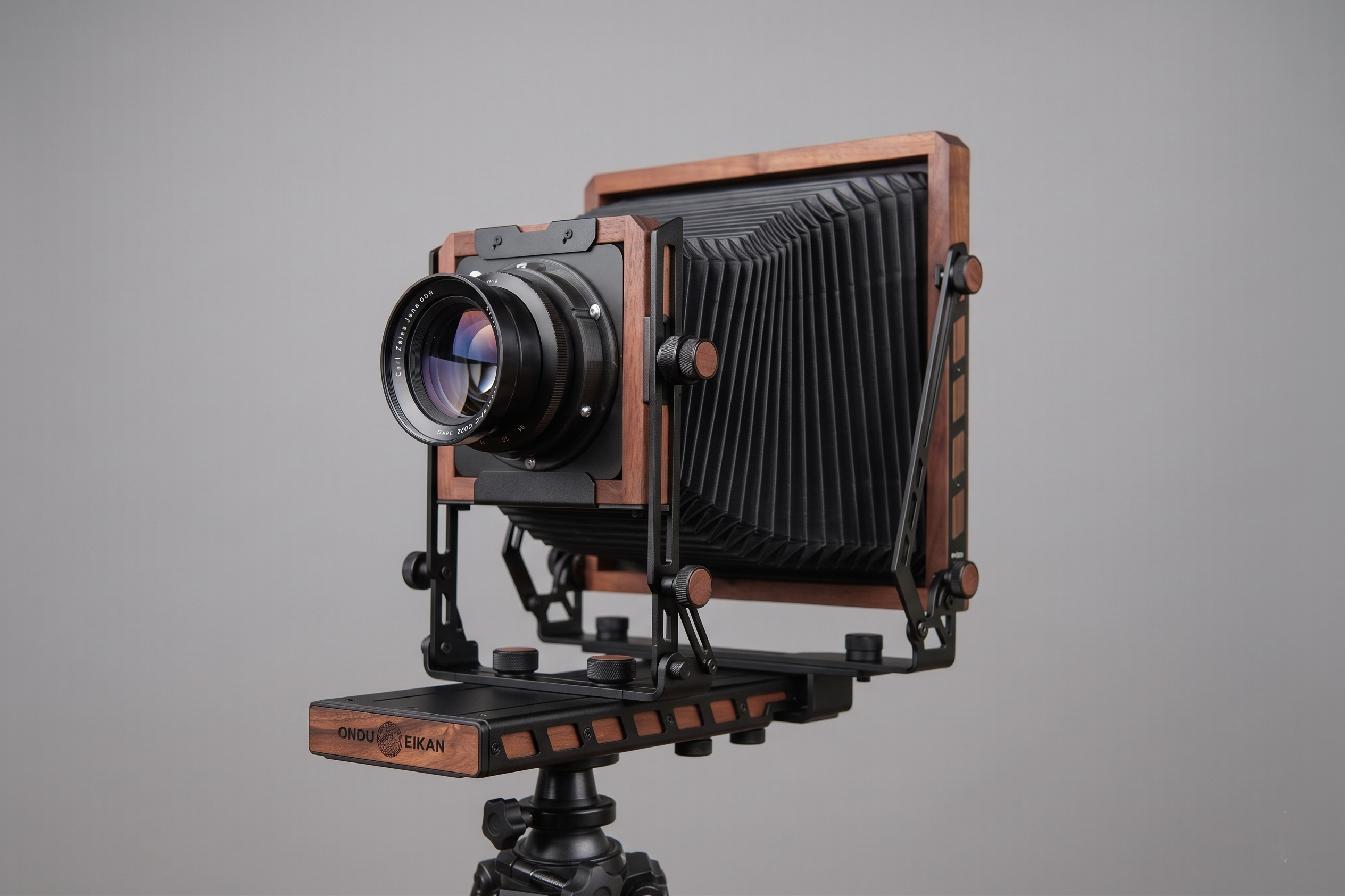

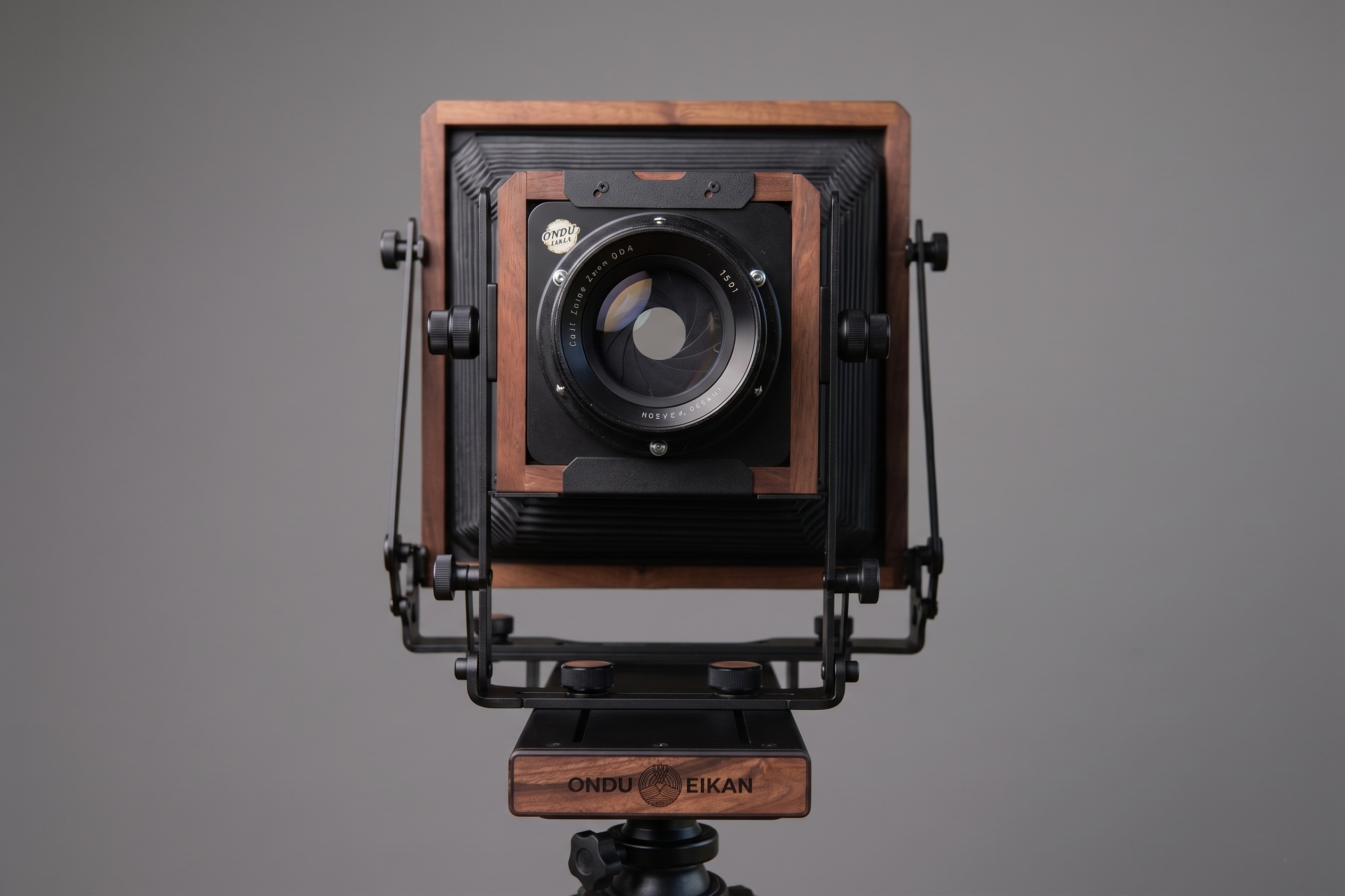

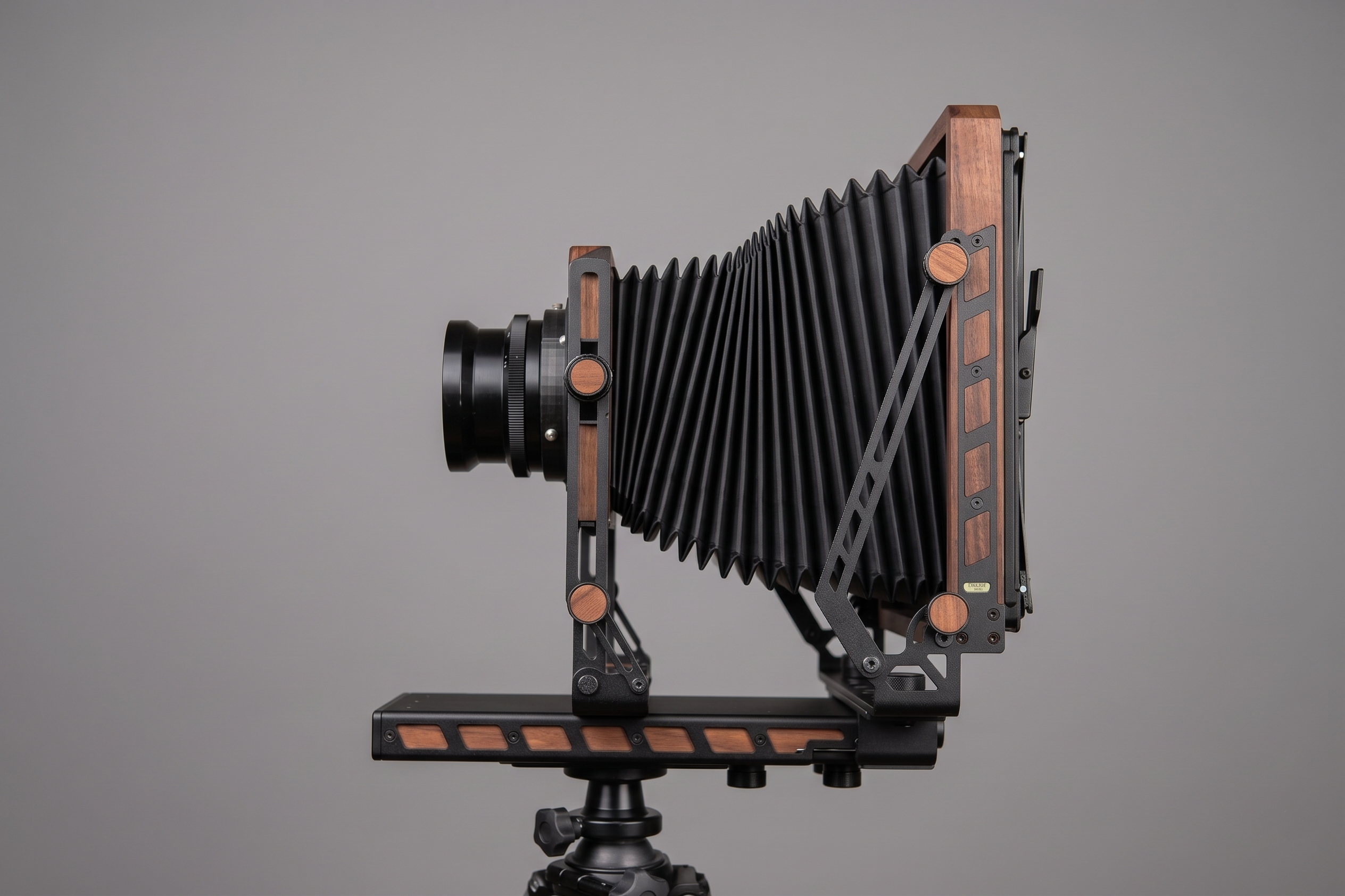

The ONDU EIKAN 8x10 is a lightweight large format field camera designed for photographers who want the full presence of 8x10 photography in a more practical and transportable form.

The goal was simple: to create a camera that keeps the beauty of the 8x10 process intact while removing unnecessary weight and complexity. The large ground glass, the deliberate rhythm, the incredible detail, and the physical presence of the negative are all there - but in a camera designed for real use in the field or studio.

Built with ONDU’s focus on simplicity, durability, repairability, and thoughtful material use, the EIKAN 8x10 is a clean, functional tool for photographers who value both the image-making process and the object they work with.

It is made for portraits, landscapes, still life, contact printing, alternative processes, and anyone ready to explore the slower, more intentional world of 8x10 photography.

  • Foldable design for easy transport and storage with rear vertical vertical lock which when disabled allows for an extra 20° of rear tilt useful when shooting wide angle lenses
  • Compatible with standard sheet film holders
  • Permanent magnets for secure attachment of the bellows and back
  • PAHT-CF Magnetic rotating back made with additive manufacturing techniques.

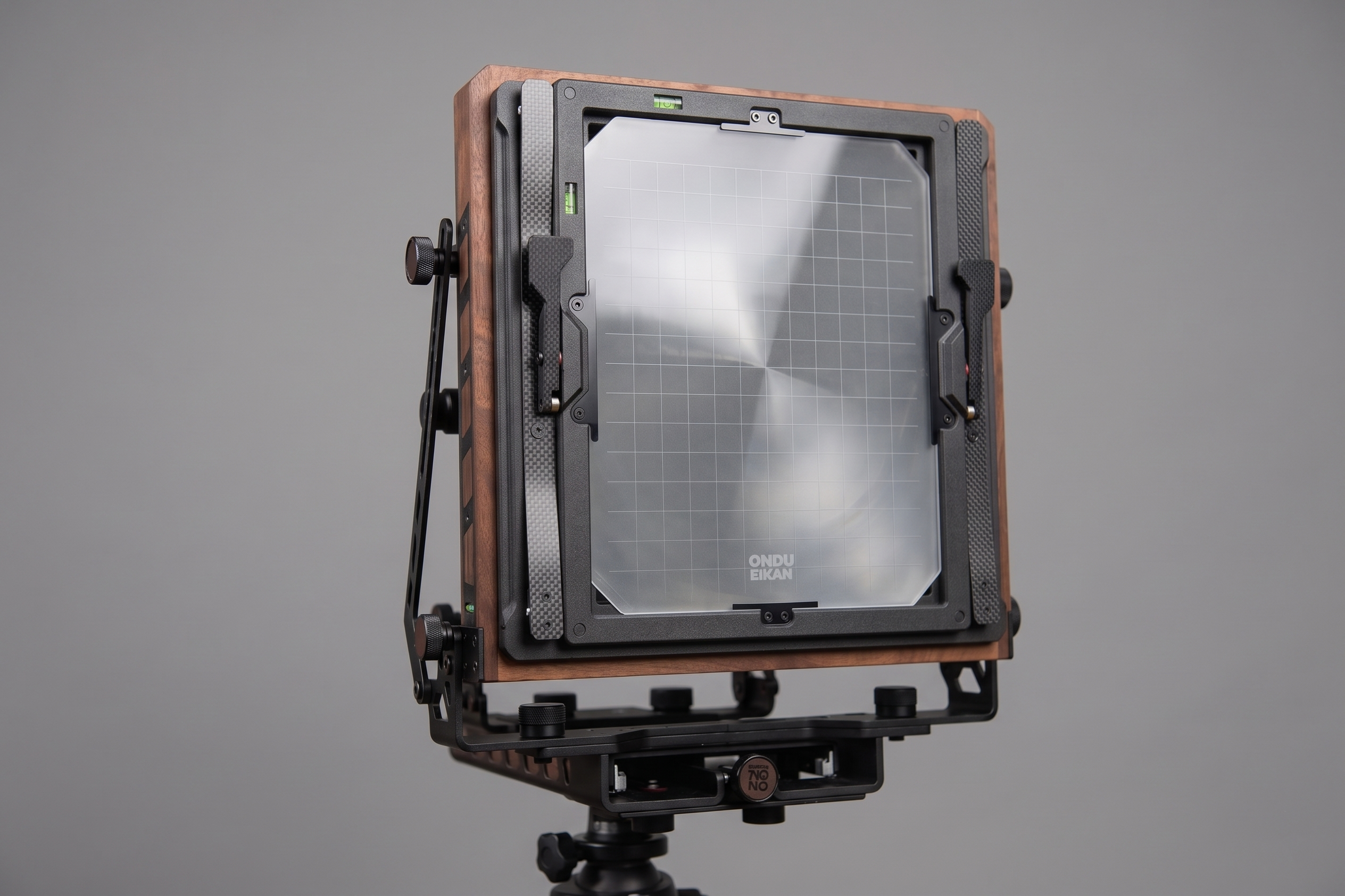

  • Ground glass with a ground glass protector

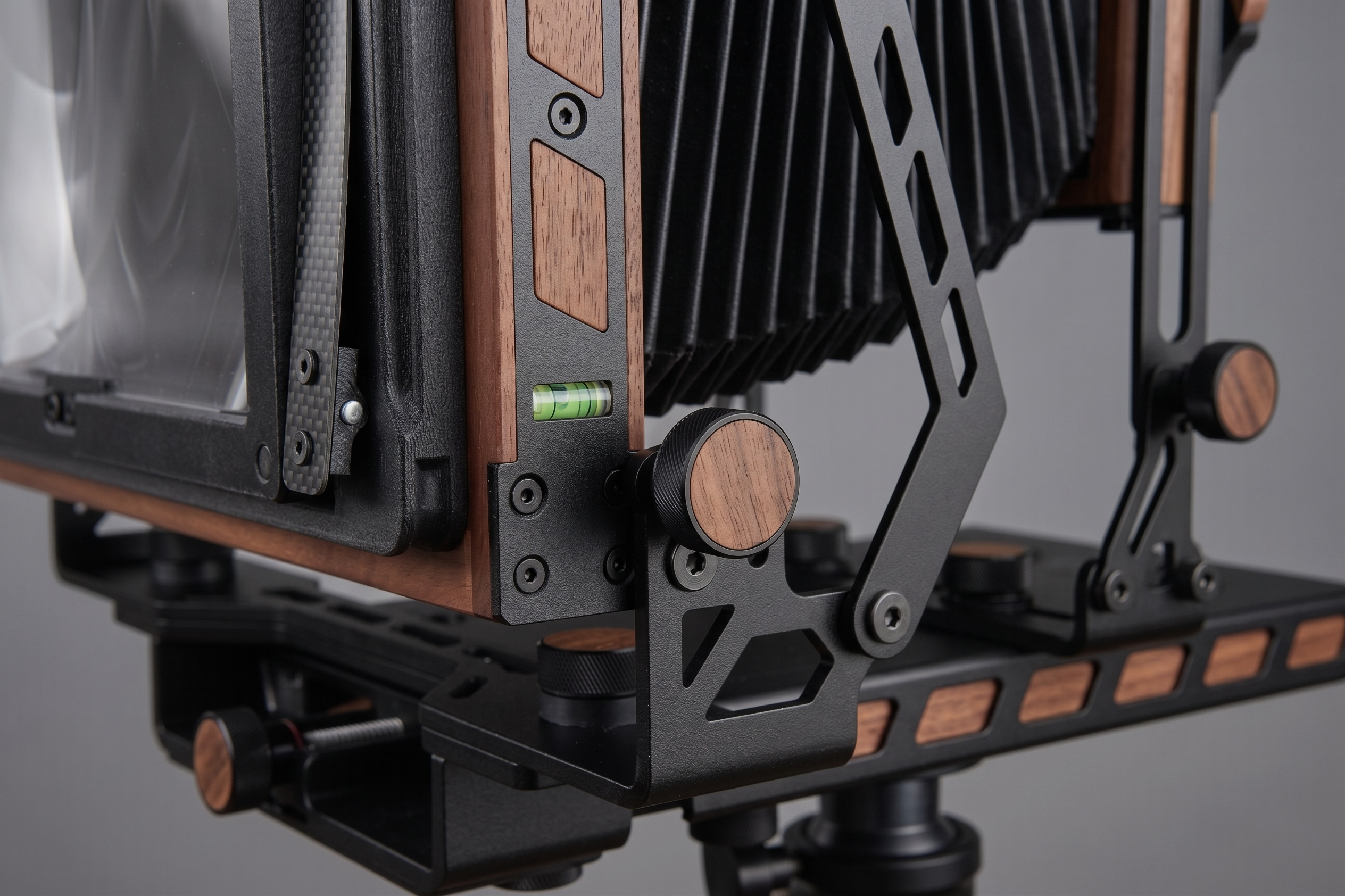

  • Made from powder coated aluminum and walnut wood for durability and unmatched design.
  • Rear swing 20° +/-

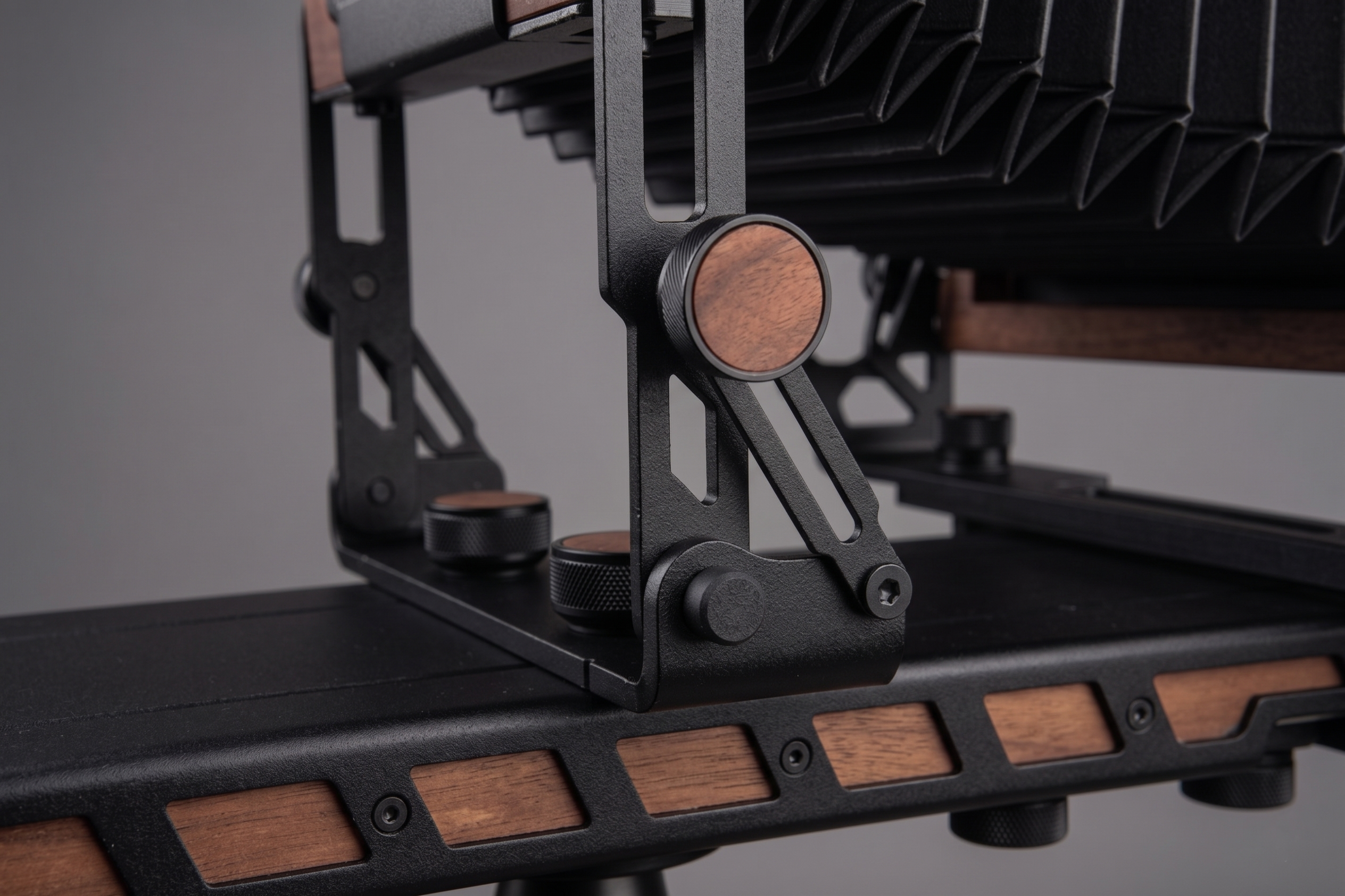

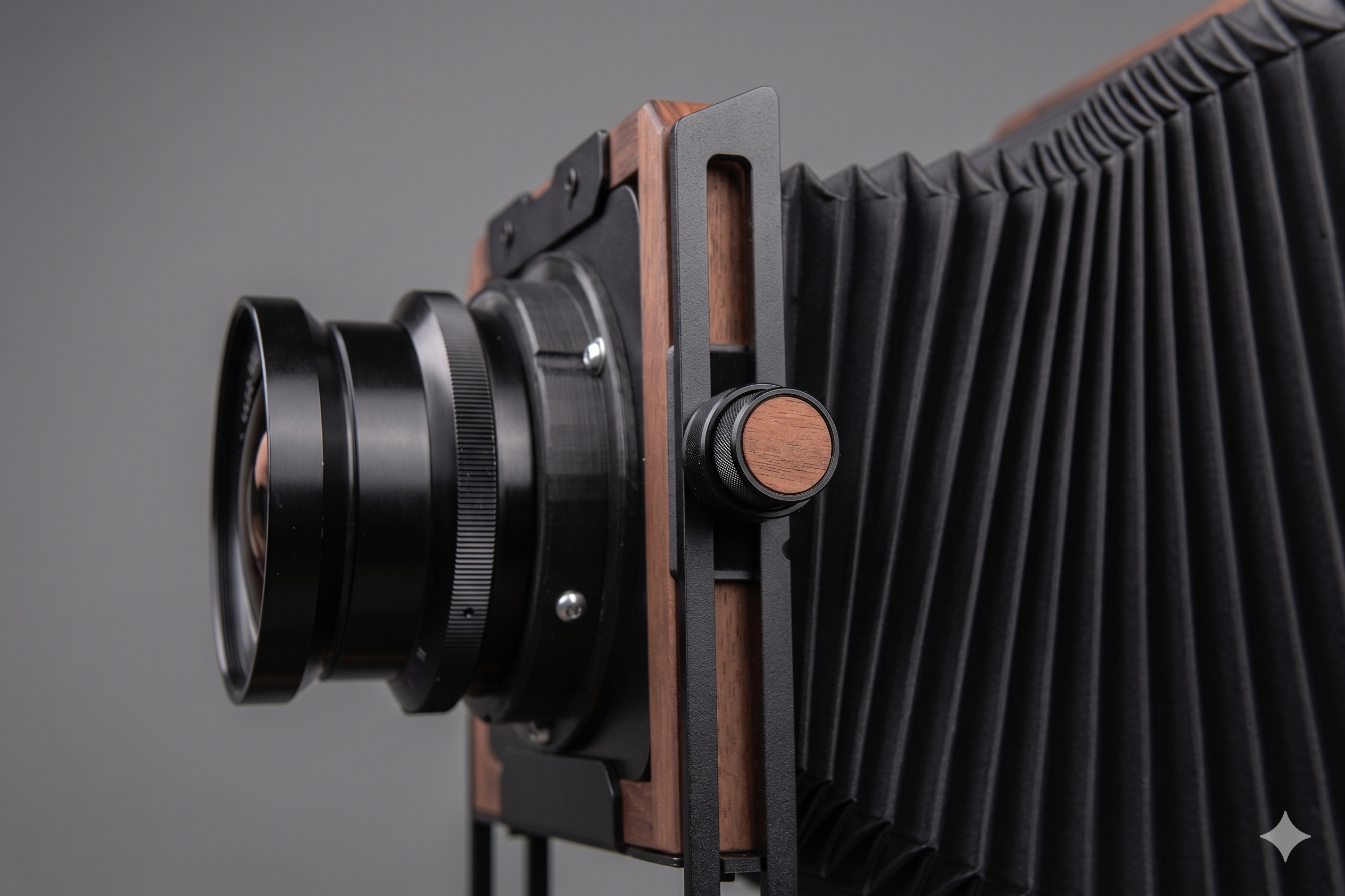

  • Independent front standard movements
  • Zeroing indication for the bottom of the front standard
  • Precise focusing system with micro linear rails
  • Dimensions: 320x360x150mm (including knobs), actual body is 320mm square
  • Weight: Approximately 3500g stanard |  4100g Range |  Actual weights fluctuate 60g +/- due to the nature of materials used. ( final weight might vary by a slight margin as well due to possible future features of the camera. )
  • Standard extension 580mm - 720 with the added Extension back module ( RANGE variant )
  • Handcrafted out of European Walnut and cnc cut aircraft grade aluminium.





A Breath of fresh air in the Large format scene!

COMITTED TO CRAFTSMANSHIP

The Eikan is meticulously designed and crafted in Slovenia, within the European Union, to ensure exceptional quality. Our commitment to excellence is reflected in the use of high-quality components throughout the manufacturing process. Unlike some manufacturers who opt for plywood or laminates, we exclusively use solid walnut wood sourced locally. This choice not only enhances the aesthetics of the final product but also improves its capabilities.

Our skilled artisans handcraft the wooden components in our workshop, employing thick 5cm slabs of kiln-steamed and dried wood. This meticulous process takes approximately three months to complete and is crucial for ensuring the stability of the wood grain by releasing fiber tensions within the wood structure.

Even the knobs used for securing camera movements are custom-designed and made from anodized aluminum. These precision-engineered knobs are manufactured on a CNC lathe by the same reputable producer responsible for crafting aluminum components for ONDU Pinhole cameras over the past decade. It is important to note that we do not utilize 3D printed knobs in any ONDU cameras, whether in the past or future.

The modular aluminum structure of the Eikan is constructed from high-grade anodized aluminum, meticulously cut using laser technology and shaped with specialized CNC brake press machines. To enhance durability and minimize scratches and wear, all aluminum components undergo a hard anodizing treatment, which fortifies the outer layer.

While we employ 3D printing in certain areas, such as the front and back standard, as well as the rotating back and ground glass focusing screen carrier, it is done purposefully. The utilization of 3D printing provides an unparalleled strength-to-weight ratio and allows for swift modifications and future upgrades, such as roll film back add-ons. These 3D printed parts are constructed using Carbon fiber reinforced PLA filament.

To maintain a high level of quality control and ensure a seamless user experience, we meticulously source all components and manufacturers within the same valley. With the exception of standard screws and magnets, nearly every component of the camera has been designed and fabricated from scratch. This deliberate approach eliminates technical compromises and delivers a product that surpasses expectations.
