135 Panoramic Pinhole camera

€160.00

        • TYou prefer 35mm film but the classical look of the 135 Pocket is sometimes not enough for those panoramic views? The ONDU 135 Panoramic is just right for you, it is a Multiformat camera which means it can make 2 different sizes of pictures. The classical 24x36mm ( Leica format ) or a double wide image with 24x72mm coverage. Still small enough to fit in a pocket this camera makes wonderful panoramas as well as easily manageable regular angle shots.

        • The ONDU 135 Panoramic Pocket is equipped with 14 magnets that hold the back and winding knobs in place as well as the shutter which works in tandem with the stop pin for shake free exposures.This camera is still tiny, only 36mm longer than the 135 Pocket and weighing in at only 250g you won’t even notice it’s there until you need it to capture that perfect moment.
        • To choose the film frame you have to either leave the wooden dividers inside for regular framing or take them out to achieve a panoramic wide angle frame. Once chosen you can’t alternate between one another until the film is complete.
          1. Dimensions:(W) 52mm x (H) 83mm (L) 173mm
          2. Weight:350g
          3. Focal length:25mm
          4. Pinhole diameter:0,15mm ( as of August 2020 previously 0.2mm at f 125 equivalent )
          5. f stop equivalent:167
            1. Camera is supplied with a 3D printed snap on filter adapter 52mm thread, wooden exposure card, reusable 135 take up spool as well as a protective carrying bag. This empty cartridge also prevents accidental overall exposures of the film.
        • Exposure chart



135 Pocket Pinhole Camera

Sold Out

        • This is the smallest camera of the ONDU range. It takes 135 film and can produce up to 36 images on one roll of film.

        • ASH VARIANT ( light wood ) has Black hardware by default and not silver as seen in pictures bellow!

        • The ONDU 135 Pocket is equipped with 14 magnets that hold the back and winding knobs in place as well as the shutter which works in tandem with the stop pin for shake free exposures

        • To count the frames to the next exposure, we simply listen to the clicker that's integrated into the cameras backplate.
          1. Dimensions:(W) 52mm x (H) 83mm (L) 153mm
          2. Weight:250g
          3. Focal length:25mm
          4. Pinhole diameter:0,15mm ( as of August 2020 previously 0.2mm at f 125 equivalent )
          5. f stop equivalent:167
            1. Camera is supplied with a 3D printed snap on filter adapter 52mm thread, wooden exposure card, reusable 135 take up spool as well as a protective carrying bag. This empty cartridge also prevents accidental overall exposures of the film.
        • Exposure chart

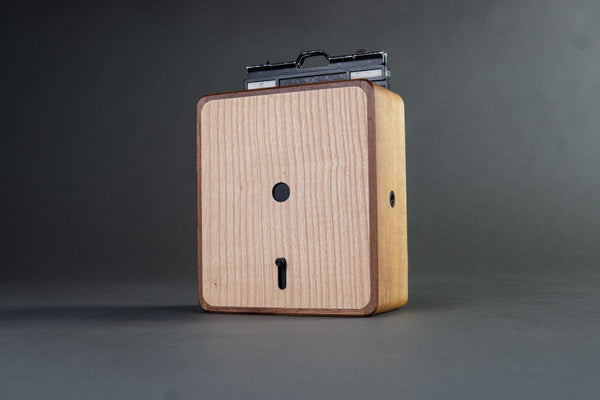

4x5" Large format

€208.00

            • If you already know a thing or two about pinhole photography or large format film photography in general this is the camera for you. With the increased film size the images this camera creates are of better “quality”* and usually look sharper. The ONDU 4X5” Large Format camera is compatible with the Polaroid 545 back which accepts the NEW-55 FILM as well as the standard 4X5” film holders available from the web and retail shops worldwide.

              The camera has a fixed focal length of 58mm and a pretty wide angle of view of 106° which means that it will take some getting used to while framing your first shots. To make this easier we have engraved vertical and horizontal field of view engraving lines as well as two levelling bulbs again vertical and horizontal, the same goes for tripod mounts, one vertical one horizontal.

              The 4x5” standard film back is secured to the camera via magnets and wooden film retaining clips while the much heavier Polaroid 545 back requires screwing knobs to hold it in place during exposures. All large formats are hand painted inside with a black matte acrylic paint and sealed with black flocking material to prevent any light leaks from entering the camera.


            1. Dimensions:(W) 82mm x (H) 162mm (L) 142mm ( with film retaining clips installed )
            2. Weight:650g
            3. Focal length:58mm
            4. Pinhole diameter:0,3mm
            5. f stop equivalent:193
            6. The camera is shipped with a, wooden exposure chart, 3D printed snap on filter, a protective carry bag as well as knobs for the Polaroid 545 back.
            7. THE 4x5 CAMERAS are in production At the moment, expected stock around end January
          • Exposure chart

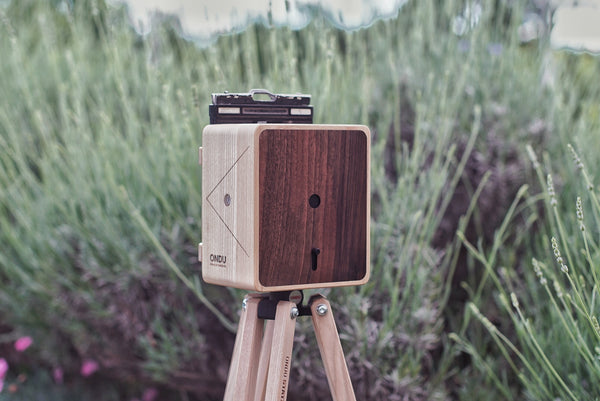

4x5" Large format EASY

€220.00

          • The ONDU 4x5" Large format EASY was made due to increased requests for an easier to manage angle of view by some of our previous supporters. The EASY has a focal length of 88mm which gives it a more narrow field of view of 84°. As the regular Large format cameras in our range it features levelling bulbs, tripod mounts and engraving lines for both horizontal and vertical compositions.

          • The ONDU 4X5” Large Format camera is compatible with the Polaroid 545 back which accepts the NEW-55 FILM as well as the standard 4X5” film holders available from the web and retail shops worldwide.

            The 4x5” standard film back is secured to the camera via magnets and wooden film retaining clips while the much heavier Polaroid 545 back requires screwing knobs to hold it in place during exposures. All large formats are hand painted inside with a black matte acrylic paint and sealed with black flocking material to prevent any light leaks from entering the camera.

          • Last two images in the gallery show the difference in depth of the regular and EASY ONDU 4x5" cameras.

            1. Dimensions:(W) 112mm x (H) 162mm (L) 142mm ( with film retaining clips installed )
            2. Weight:750g
            3. Focal length:88mm
            4. Pinhole diameter:0,35mm
            5. f stop equivalent:251
            6. The camera is shipped with a, wooden exposure chart,  snap on filter adapter, a protective carry bag as well as knobs for the Polaroid 545 back.
          • Exposure chart

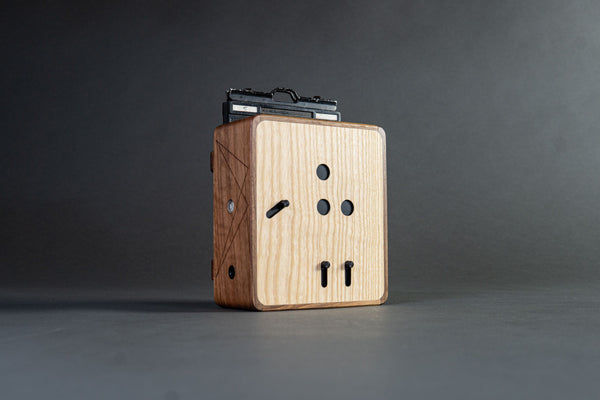

4x5" Large Format RISE

€230.00

      • If you already know a thing or two about pinhole photography or large format film photography in general this is the camera for you. With the increased film size the images this camera creates are of better “quality”* and usually look sharper. The ONDU 4X5” Large Format camera is compatible with the Polaroid 545 back which accepts the NEW-55 FILM as well as the standard 4X5” film holders available from the web and retail shops worldwide.

      • This is the RISE version that has 3 piholes, one in the centre and the other 2 located on thirds of the pinhole plane. With 3 tripod mounts it is possible to expose in all directions even with the rise pinholes. The RISE option gives you the possibility of raising or lowering the horizon to lower or upper third.
      • he camera has a fixed focal length of 58mm and a pretty wide angle of view of 106° which means that it will take some getting used to while framing your first shots. To make this easier we have engraved vertical and horizontal field of view engravingand added three levelling bulbs for vertical and horizontal orientations, the same goes for tripod mounts, one vertical two horizontal to make use of the rise feature, a first in the ONDU RISE series. The 4x5” standard film back is secured to the camera via magnets and wooden film retaining clips while the much heavier Polaroid 545 back requires screwing knobs to hold it in place during exposures. All large formats are hand painted inside with a black matte acrylic paint and sealed with black flocking material to prevent any light leaks from entering the camera. THE 4x5 CAMERAS are in production At the moment, expected stock around end January

        1. Dimensions:(W) 87mm x (H) 162mm (L) 142mm
        2. Weight:430g
        3. Focal length:58mm
        4. Pinhole diameter:0,3 mm
        5. f stop equivalent:193
        6. The camera is shipped with a, wooden exposure chart, 3D printed snap on filter, a protective carry bag (  as well as knobs for the Polaroid 545 back.
        7. THE 4x5 CAMERAS are in production At the moment, expected stock around end January
      • Exposure chart

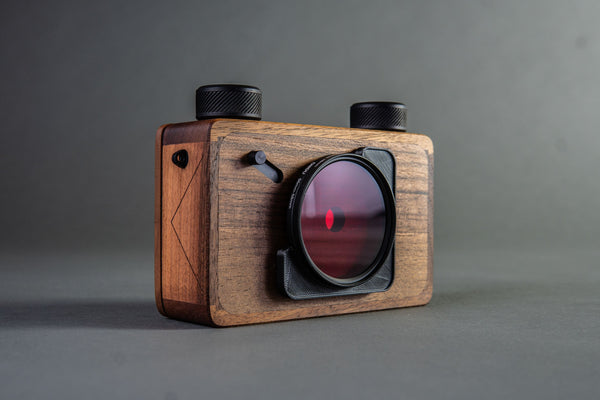

6x12 Multiformat

€245.00 €265.00

      • Another highly popular ONDU, the 6x12 Multiformat squeezes in three cameras in one. It can produce images 6x6, 6x9 as well as 6x12 in size. Each format has it’s own characteristics depending on what the photographer is trying to achieve. One day you prefer the square format, some other day the 6x9 classic looks good and when you want to capture that wonderful landscape the 6x12 will come in really handy. To choose the film frame you need to set wooden frame dividers that are located inside the camera to the desired setting prior to loading your film.

      • Like the same suggests the Multiformat is the most versatile of ONDU's and packs three shooting capabilities in one relatively tiny package while still weighing around the 500g mark.
      • The ONDU 6x12 Multiformat is equipped with 14 magnets that hold the back and winding knobs in place as well as the shutter which works in tandem with the stop pin for shake free exposures. There are two orange windows on the back of the camera through which you can see the frame numbers while advancing the film to the next shot.

        1. Dimensions:(W) 65mm x (H) 103mm (L) 200mm
        2. Weight:450g
        3. Focal length:40mm
        4. Pinhole diameter:0,25mm
        5. f stop equivalent:160
        6. Camera is shipped with a wooden exposure card, 3D printed snap on filter adapter 58mm, a protective carry bag as well as an empty 120 film spool so you can load your camera immediately.
      • Exposure chart

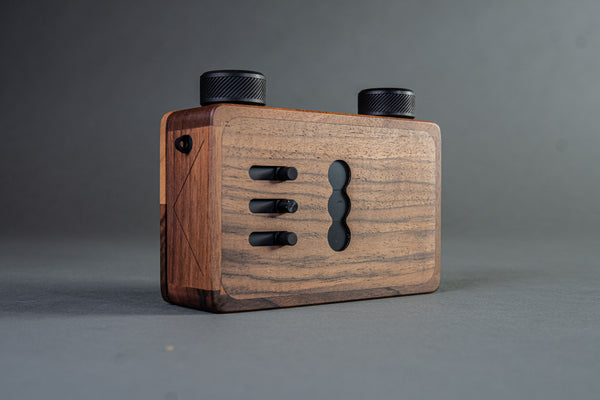

6x12 RISE

€310.00


      • The ONDU 6x12 RISE the only 6X12 pinhole camera on the market that features 3 pinholes positioned on lower and upper third as well as centre. Another highly popular ONDU, the 6x12 Multiformat squeezes in three cameras in one. It can produce images 6x6, 6x9 as well as 6x12 in size. Each format has it’s own characteristics depending on what the photographer is trying to achieve. One day you prefer the square format, some other day the 6x9 classic looks good and when you want to capture that wonderful landscape the 6x12 will come in really handy. To choose the film frame you need to set wooden frame dividers that are located inside the camera to the desired setting prior to loading your film.

      • The multiformat capabilities coupled with the RISE function make this the most versatile camera out there!
      • The RISE has 3 holes, this gives you the possiblity to expose the images with the option of raising of lowering the horizon of the image either to the lower or upper third or centre without distorting the horizontal lines of the subject.
      • Like the same suggests the Multiformat is the most versatile of ONDU's and packs three shooting capabilities in one relatively tiny package while still weighing under the 500g mark.
      • The ONDU 6x12 Multiformat is equipped with 20 magnets that hold the back and winding knobs in place as well as the new sliding shutter that was designed for shake free exposures as well as the ability to shoot pinholes with filters. There is also a red window shutter on the back of the camera through which you can see the frame numbers while advancing the film to the next shot.
      • ONDU RISE Pinhole cameras series are a registered design in th EU.
        1. Dimensions:(W) 65mm x (H) 103mm (L) 200mm
        2. Weight:500g
        3. Focal length:40mm
        4. Pinhole diameter:0,25mm
        5. f stop equivalent:160
        6. The 6x12 RISE is shipped with a wooden exposure card,  snap on filter attachment that is compatible with COKIN A series filters, a protective carry bag as well as an empty 120 film spool so you can load your camera immediately.
      • Exposure chart

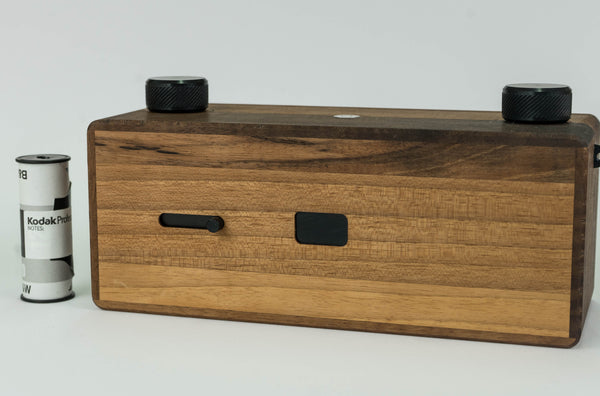

6x17 ONDURAMA

€240.00

          • THE ONDURAMA will be in stock around the end of January 2025

          • A special rare camera which makes astonishing images that are 6x17 ( 56x168mm ) in size. This is a perfect camera for panoramic landscape or architecture shots but it’s also quite film hungry meaning you can make 4 images before you need to reload this camera for the next shoot. This hunger though doesn’t go without a reward, the images this beauty is able to produce will astound you! We have designed a special loading process for this camera since the film plane is curved. This is the only ONDU so far that features the curved film plane which helps to create images with less vigneting, and almost no perspective distortion when used horizontally. Tilting the camera up or down however will create wonderful horizon perspective distortions. .

          • The latest 6x17 is also a multiformat capable camera, meaning it's able to shoot 6x12 as well.

          •

             The loading process for the 6x17 ONDURAMA is done with the help of extra supplied magnet puller which is secured to the carry bag of every ONDURAMA. The loading instructions are explained clearly in the user manual which you can also download in the Manual & Exposure tab on this page.

             The 6x17 ONDURAMA is equipped with 18 magnets all together that hold the back and winding knobs in place as well as the shutter. On the back of the camera there are two red windows through which you can see the frame numbers while advancing the film to the next shot. The shutter works in tandem with the built in magnets and the stop pin meaning no more shaky exposures.

            1. Dimensions:(W) 90mm x (H) 103mm (L) 200mm
            2. Weight:680g
            3. Focal length:70mm
            4. Pinhole diameter:0,3mm
            5. f stop equivalent:233
            6. The camera is shipped with a user manual, wooden exposure chart, a protective carry bag as well as an empty 120 film spool so you can load your camera immediately.
          • Manual & Exposure chart

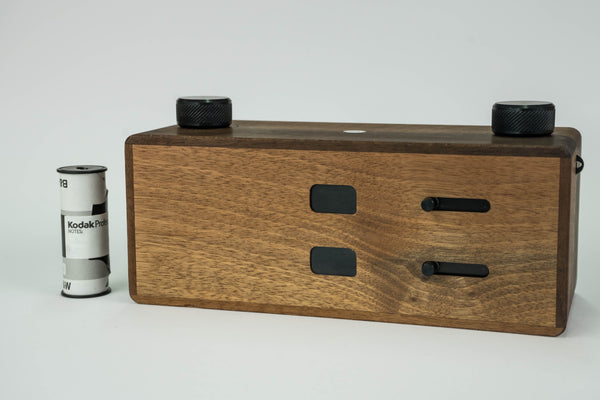

6x17 ONDURAMA RISE

€336.00

          • A special rare camera which makes astonishing images that are 6x17 ( 56x168mm ) in size. This is a perfect camera for panoramic landscape or architecture shots but it’s also quite film hungry meaning you can make 4 images before you need to reload this camera for the next shoot. This hunger though doesn’t go without a reward, the images this beauty is able to produce will astound you! We have designed a special loading process for this camera since the film plane is curved. This is the only ONDU so far that features the curved film plane which helps to create images with less vigneting, and almost no perspective distortion when used horizontally. Tilting the camera up or down however will create wonderful horizon perspective distortions.

             The loading process for the 6x17 ONDURAMA is done with the help of extra supplied magnet puller which is secured to the carry bag of every ONDURAMA. The loading instructions are explained clearly in the user manual which you can also download in the Manual & Exposure tab on this page.

             The 6x17 ONDURAMA is equipped with 18 magnets all together that hold the back and winding knobs in place as well as the shutter. On the back of the camera there are two red windows through which you can see the frame numbers while advancing the film to the next shot. The shutter works in tandem with the built in magnets and the stop pin meaning no more shaky exposures.

            1. Dimensions:(W) 90mm x (H) 103mm (L) 200mm
            2. Weight:680g
            3. Focal length:70mm
            4. Pinhole diameter:0,3mm
            5. f stop equivalent:233
            6. The camera is shipped with a user manual, wooden exposure chart, a protective carry bag as well as an empty 120 film spool so you can load your camera immediately.
          • Manual & Exposure chart

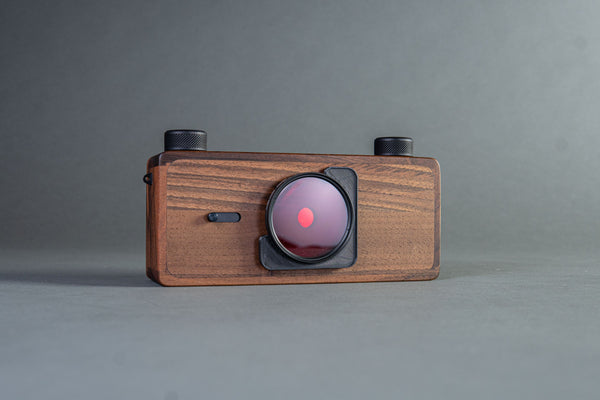

6X6 EASY

€230.00

        • THE ONDU 6x6 EASY IS CURRENTLY OUT OF STOCK YOU CAN STILL ORDER IT, DELIVERY APPROX END OF September!

        • The ONDU 6x6 EASYhas been requested by photographers for a few years now, this is the first batch to see if there is a need for a less agressive angle of view in a pinhole camera. Just a fraction bigger than the 6x6 Pocket its still small and light enough to fit anywhere and weighs a mere 380g. Narrower field of view this camera produces images that are not so extreme in terms of lines distortions with a diagonal field of view of 75°compared to the 115°of the 6x6 pocket. On a regular 120 film you can make up to 12 exposures 56x56mm in size.

        • This is a popular travel camera due to it's small size, especially for photographers who still like to shoot on 120 film and is suitable both for nature as well as urban shots.

        • The ONDU 6x6 EASY is equipped with 16 magnets that hold the back and winding knobs in place as well as the new sliding shutter that was designed for shake free exposures as well as the ability to shoot pinholes with filters. There is also a red window shutter on the back of the camera through which you can see the frame numbers while advancing the film to the next shot.
        1. Dimensions:(W) 66mm x (H) 103mm (L) 139mm
        2. Weight:420g
        3. Focal length:52mm
        4. Pinhole diameter:0,25 mm
        5. f stop equivalent:208
        6. Orange view window for viewing the frame number with integrated sliding shutter.
        7. No off the shelf components, everything designed and made by ONDU or our local manufacturers.

        8. Camera is shipped with a wooden exposure card, 3D printed snap on filter that is compatible with 58mm threaded circular filters, a protective carry bag as well as an empty 120 film spool so you can load your camera immediately.


      • Exposure chart

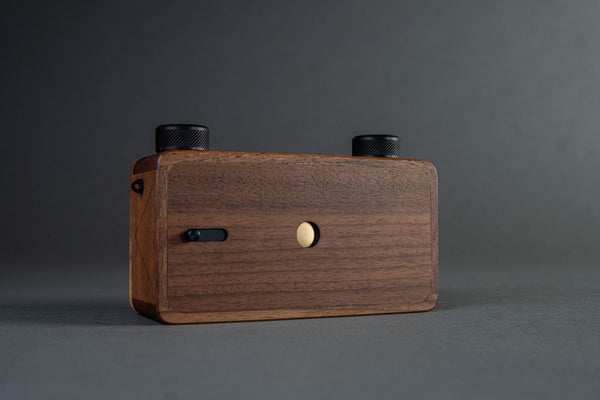

6X6 POCKET

€210.00

        • The ONDU 6x6 Pocket is one of the most sought after models, it’s a tiny camera given the fact that it uses 120 format film to expose an image. Just a fraction bigger than the 135 Pocket its still small and light enough to fit anywhere and weighs a mere 280g. Because of the larger film frame the images produced with this camera are of a slightly better quality than 135 cameras. On a regular 120 film you can make up to 12 exposures 56x56mm in size. The angle of view is quite wide and at 115° getting close to a subject as well as fitting everything in your frame has never been so easy.

        • This is a popular travel camera due to it's small size, especially for photographers who still like to shoot on 120 film and is suitable both for nature as well as urban shots.

        • The ONDU 6x6 Pocket is equipped with 16 magnets that hold the back and winding knobs in place as well as the new sliding shutter that was designed for shake free exposures as well as the ability to shoot pinholes with filters. There is also a red window shutter on the back of the camera through which you can see the frame numbers while advancing the film to the next shot.
        1. Dimensions:(W) 49mm x (H) 103mm (L) 139mm
        2. Weight:350g
        3. Focal length:25mm
        4. Pinhole diameter:0,15mm ( As of June 2020 ) 0,2mm prior
        5. f stop equivalent:167
        6. Orange view window for viewing the frame number with integrated sliding shutter.
        7. No off the shelf components, everything designed and made by ONDU or our local manufacturers.

        8. Camera is shipped with a wooden exposure card, 3D printed snap on filter that is compatible with 58mm threaded circular filters, a protective carry bag as well as an empty 120 film spool so you can load your camera immediately.

      • Exposure chart

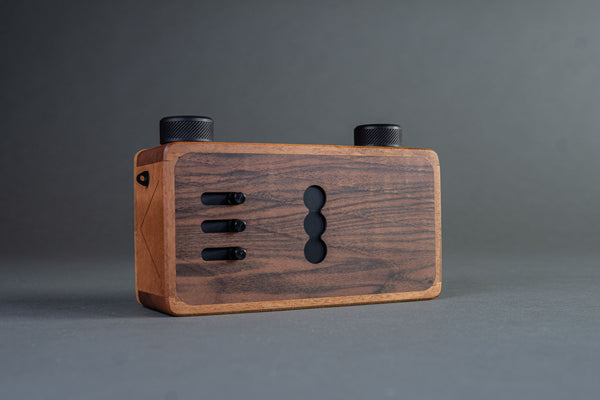

6X6 RISE

€235.00


      • The ONDU 6x6 RISE is one of the most sought after models, it’s a tiny camera given the fact that it uses 120 format film to expose an image. Just a fraction bigger than the 135 Pocket its still small and light enough to fit anywhere and weighs a mere 280g. Because of the larger film frame the images produced with this camera are of a slightly better quality than 135 cameras. On a regular 120 film you can make up to 12 exposures 56x56mm in size. The angle of view is quite wide and at 115° getting close to a subject as well as fitting everything in your frame has never been so easy.

      • The fact it has 3 holes gives you the option to expose the images with the option of raising of lowering the horizon of the image either to the lower or upper third or centre without distorting the horizontal lines of the subject.

      • This is a popular travel camera due to it's small size, especially for photographers who still like to shoot on 120 film and is suitable both for nature as well as urban shots.

      • The ONDU 6x6 RISE is equipped with 20 magnets that hold the back and winding knobs in place as well as the new sliding shutter that was designed for shake free exposures as well as the ability to shoot pinholes with filters. There is also a red window shutter on the back of the camera through which you can see the frame numbers while advancing the film to the next shot.

      • ONDU RISE Pinhole cameras series are a registered design in th EU.
        1. Dimensions:(W) 49mm x (H) 103mm (L) 139mm
        2. Weight:350g
        3. Focal length:25mm
        4. Pinhole diameter:0,15mm ( As of June 2020 ) 0,2mm prior
        5. f stop equivalent:167

        6. Camera is shipped with a wooden exposure card, 3D printed snap on filter that is compatible with COKIN A series filters, a protective carry bag as well as an empty 120 film spool so you can load your camera immediately.

      • Exposure chart




6x9 Classic

€235.00

      • For a long time we were asked to make a dedicated 6x9 pinhole camera. Why is 6x9 so popular? Well the frame size has a 2:3 ratio which is the same to the classical 24x36mm so called Leica format that most photographers are used to. With the 40mm focal length image composition is a breeze, vigneting is minimal and a semi wide angle of view makes pictures look like they were not made with a pinhole camera at all. Combined that with the larger frame size than the Leica you have a recipe for success. The physical frame size on this camera is 56x84mm which means you will be able to make 8 images on a single roll of 120 film.

      • ASH VARIANT ( light wood ) has Black hardware by default and not silver as seen in pictures bellow!
      • First introduced as a novelty based on feedback this camera was seen in the hands of satisfied photographers who like the 2:3 ratio combined an easy to manage angle of view for excellent results every time.

      • The ONDU 6x9 Classic is equipped with 14 magnets that hold the back and winding knobs in place as well as the shutter which works in tandem with the stop pin for shake free exposures. There is also a red window on the back of the camera through which you can see the frame numbers while advancing the film to the next shot.


        1. Dimensions:(W) 65mm x (H) 103mm (L) 166mm
        2. Weight:380g
        3. Focal length:40mm
        4. Pinhole diameter:0,25mm
        5. f stop equivalent:160

        6. Camera is shipped with a wooden exposure card, 3D Printed snap on filter adapter 58mm, a protective carry bag as well as an empty 120 film spool so you can load your camera immediately.

      • Exposure chart

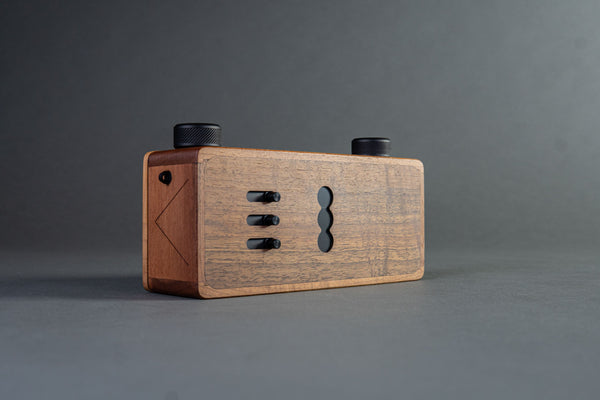

      6x9 RISE

      €252.00

          • The ONDU 6x9 RISE the only 6X9 pinhole camera on the market that features 3 pinholes positioned on lower and upper third as well as centre.  Why is 6x9 so popular? Well the frame size has a 2:3 ratio which is the same to the classical 24x36mm so called Leica format that most photographers are used to. With the 40mm focal length image composition is a breeze, vignetting is minimal and a semi wide angle of view makes pictures look like they were not made with a pinhole camera at all. Combined that with the larger frame size than the Leica you have a recipe for success. The physical frame size on this camera is 56x84mm which means you will be able to make 8 images on a single roll of 120 film.

          • The RISE has 3 holes, this gives you the possiblity to expose the images with the option of raising of lowering the horizon of the image either to the lower or upper third or centre without distorting the horizontal lines of the subject.
          • First introduced as a novelty based on feedback this camera was seen in the hands of satisfied photographers who like the 2:3 ratio combined an easy to manage angle of view for excellent results every time. Now coupled with the RISE feature!

          • The ONDU 6x9 Classic is equipped with 20 magnets that hold the back and winding knobs in place as well as the new sliding shutter that was designed for shake free exposures as well as the ability to shoot pinholes with filters. There is also a red window shutter on the back of the camera through which you can see the frame numbers while advancing the film to the next shot.

          • ONDU RISE Pinhole cameras series are a registered design in th EU.
          • Walnut 6x9 RISE is in production, estimated shipping end December 2024
            1. Dimensions:(W) 65mm x (H) 103mm (L) 166mm
            2. Weight:380g
            3. Focal length:40mm
            4. Pinhole diameter:0,25mm
            5. f stop equivalent:160

            6. Camera is shipped with a wooden exposure card, 3D printed snap on filter that is compatible with COKIN - A series filters, a protective carry bag as well as an empty 120 film spool so you can load your camera immediately.

          • Exposure chart

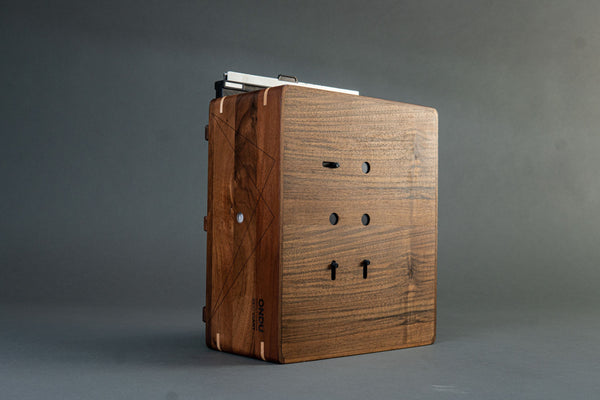

      8x10" Giant Pinhole camera

      Sold Out

              • The name of this beauty says it all, it is a GIANT camera compared to all the rest in the ONDU Pinhole camera range. It makes images 8x10” in size and has proven itself all over the world to be a sturdy and functional camera. With the comeback of direct positive photographic paper this is a great tool for those who want to see their pictures immediately and like the big size it produces. The GIANTS are laser numbered and there is only a limited quantity of these cameras available at this time.

              •  The camera has a fixed focal length of 126mm and a pretty wide angle of view of 100° which means that it will take some getting used to while framing your first shots. To make this easier we have engraved vertical and horizontal field of view engraving lines as well as two levelling bulbs again vertical and horizontal, the same goes for tripod mounts, one vertical one horizontal.

              • The camera comes supplied with a magnetic snap on filter holder which takes standard 58mm filters and works on all three positions.

              •

                We added two offset pinholes with an offset of 60mm for vertical and  50mm for horizontal positions. The 8x10”standard film back is secured to the camera via magnets and three wooden film retaining clips. All large formats are painted inside with a black matte acrylic paint and sealed with black flocking material to prevent any light leaks from entering the camera.

                1. Dimensions:(W) 145mm x (H) 298mm (L) 255mm
                2. Weight:1600g
                3. Focal length:126mm
                4. Pinhole diameter:0,45mm
                5. f stop equivalent:280
                6. The camera is shipped with a wooden exposure chart, a protective carry bag, magnetic filter holder and 8x10" film back retaining clips.
              • Exposure card




      Engraving service

      €12.00

      If you would like your ONDU engraved with a special quote or just your initials choose this option together with your ONDU. You can engrave...

      View full product details

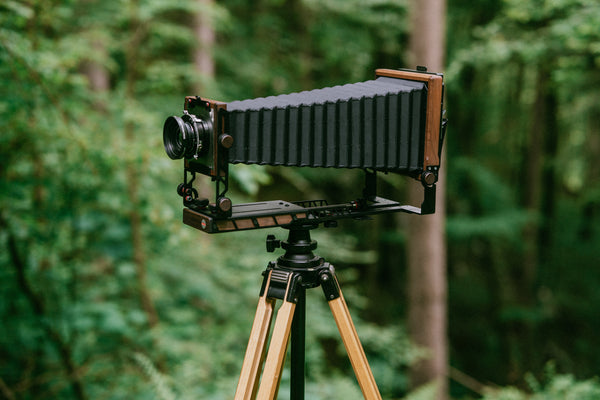

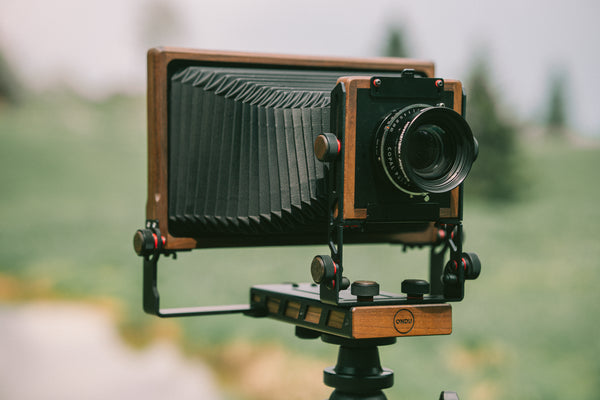

      ONDU EIKAN 4X5" RANGE

      €1,250.00

              • Imagine a camera that grows with you. The EIKAN is the realization of that concept. For years, I had been envisioning a design for a large format camera. However, I hesitated to bring it to life because it didn't offer any innovative solutions to the problems I wanted to address. That is, until I developed the modular system of the ONDU EIKAN Camera range.

              • ONDU EIKAN 4x5" RANGE - shares almost all of the same features as the Standard with the exception of longer bellows and a rear sliding rail that enables the camera an extra 10cm or rear extension. This means that the total extension reaches all the way up to 420mm. Perfect for macro photography or longer focal length lenses. It weighs 1600g.

              • THE 4x5 CAMERAS are in production At the moment, expected stock around end January
              • .
                  • 96x99 Lensboard size
                  • Foldable design for easy transport and storage with rear vertical vertical lock which when disabled allows for an extra 20° of rear tilt useful when shooting wide angle lenses.
                  • Compatible with standard sheet film holders
                  • Permanent magnets for secure attachment of the bellows and back
                  • Graflock compatible with Lomograflok, and other graflock backs
                  • Ground glass with a ground glass protector
                  • Premium anodized aluminum and walnut wood for durability and unmatched design
                  • Front zeroing locks
                  • Zeroing indication for the bottom of the front standard
                  • Precise focusing system with micro linear rails
                  • Dimensions: 210x210x100mm (including knobs), actual body is 185mm square
                  • Weight: Approximately 1600g . Actual weights fluctuate 50g +/- due to the nature of materials used. ( final weight might vary by a slight margin as well due to possible future features of the camera. )
                  • Max Bellows extension 420mm
                  • Possible to convert into a dedicated 4x10" camera.
                  • Handcrafted by ONDU in Slovenia out of European Walnut and cnc cut aircraft grade aluminium.

                  Movements

                  • Max Front Rise/Fall: 42mm / 40mm
                  • Max Front Shift: 20mm
                  • Max Front Swing: +/- 45º
                  • Rear Tilt: + / - 20º
                  • Max Front Tilt: +/- 45º
              • Exposure card








      View full product details

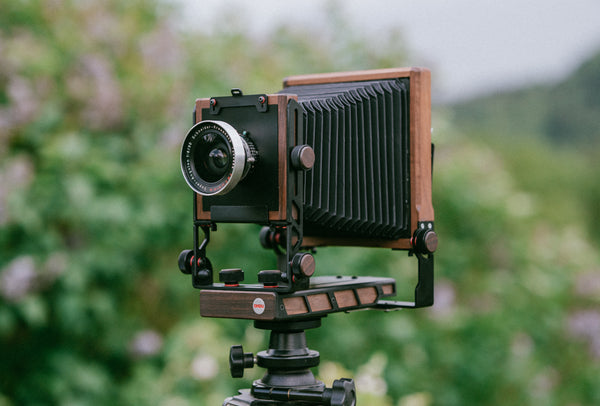

      ONDU EIKAN 4x5" Standard

      €980.00

              • Imagine a camera that grows with you. The EIKAN is the realization of that concept. For years, I had been envisioning a design for a large format camera. However, I hesitated to bring it to life because it didn't offer any innovative solutions to the problems I wanted to address. That is, until I developed the modular system of the ONDU EIKAN Camera range.

              •  This camera serves as the perfect gateway to large format photography, allowing you to continually improve and nurture your creative flow over time. Its modular design empowers you to make enhancements and adapt the camera to your evolving needs. Whether you're a beginner venturing into large format imagery or seeking a lightweight setup, the Standard ONDU Eikan set is the ideal camera to start your large format journey. All orders made after 15.12.2024 Have a lead time of 2-4 Weeks.


                  • Foldable design for easy transport and storage with rear vertical vertical lock which when disabled allows for an extra 20° of rear tilt useful when shooting wide angle lenses.
                  • Compatible with standard sheet film holders
                  • Permanent magnets for secure attachment of the bellows and back
                  • Graflock compatible with Lomograflok, and other graflock backs
                  • Ground glass with a ground glass protector
                  • Premium materials such as anodized aluminum and walnut wood for durability and unmatched design
                  • Front zeroing locks
                  • Zeroing indication for the bottom of the front standard
                  • Precise focusing system with micro linear rails
                  • Dimensions: 210x210x100mm (including knobs), actual body is 185mm square
                  • Weight: Approximately 1500g stanard |  1600g Range | 1970g Panoramikku 4x10". Actual weights fluctuate 50g +/- due to the nature of materials used. ( final weight might vary by a slight margin as well due to possible future features of the camera. )
                  • Standard extension 320mm - 420 with the added Extension back module
                  • Possible to convert into a dedicated 4x10" camera.
                  • Handcrafted out of European Walnut and cnc cut aircraft grade aluminium.

                  Movements

                  • Max Front Rise/Fall: 42mm / 40mm
                  • Max Front Shift: 20mm
                  • Max Front Swing: +/- 45º
                  • Rear Tilt: + / - 20º
                  • Max Front Tilt: +/- 45º
              • Exposure card




      View full product details



      ONDU EIKAN PANORAMIKKU 4X10"

      €1,400.00 €1,600.00

              • Imagine a camera that grows with you. The EIKAN is the realization of that concept. For years, I had been envisioning a design for a large format camera. However, I hesitated to bring it to life because it didn't offer any innovative solutions to the problems I wanted to address. That is, until I developed the modular system of the ONDU EIKAN Camera range.

              • ONDU EIKAN 4x10" Panoramikku - shares the same rear extension of the RANGE module with the addition of a new rear standard as well as a completely new bellows that fit the panoramic format. Weight of the camera is just under 2 kilos at 1970g.

              • All orders made after 30.10.2024  have a lead time of 4-8 weeks with expected shipping mid to end December!
                  • 96x99 Lensboard size
                  • Foldable design for easy transport and storage with rear vertical vertical lock which when disabled allows for an extra 20° of rear tilt useful when shooting wide angle lenses.
                  • Compatible with standard sheet film holders
                  • Permanent magnets for secure attachment of the bellows and back

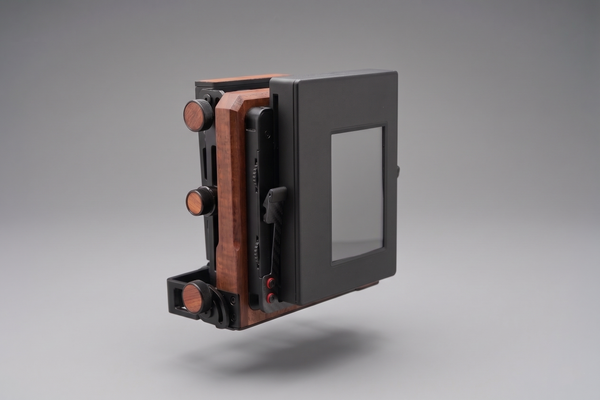

                  • Graflock compatible with Lomograflok, and other graflock backs
                  • Ground glass with a ground glass protector
                  • Premium anodized aluminum and walnut wood for durability and unmatched design
                  • Front zeroing locks
                  • Zeroing indication for the bottom of the front standard
                  • Precise focusing system with micro linear rails
                  • Dimensions: 343x210x100mm (including knobs), actual body is 320mm x185mm
                  • Weight: 1970g Panoramikku 4x10". Actual weights fluctuate 50g +/- due to the nature of materials used. ( final weight might vary by a slight margin as well due to possible future features of the camera. )
                  • Max bellows draw 420mm

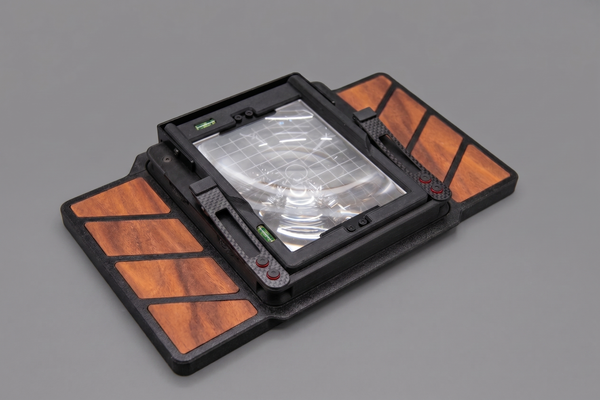

                  • Possible to convert into a 4x5" camera with the RANGE add-on. ( available soon )
                  • Handcrafted by ONDU in Slovenia out of European Walnut and cnc cut aircraft grade aluminium.

                  Movements

                  • Max Front Rise/Fall: 42mm / 40mm
                  • Max Front Shift: 20mm
                  • Max Front Swing: +/- 45º
                  • Rear Tilt: + / - 20º
                  • Max Front Tilt: +/- 45º
              • Exposure card




      View full product details
